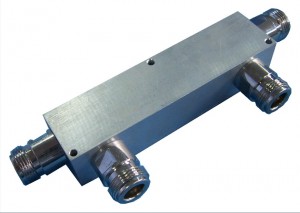

Product Details
Features
Ultra-Wideband,Compact Size,High Reliability
Low Insertion Loss, High Directivity
Electrical specifications
| Frequency Range | 0.8~2GHz |
| Insertion Loss | ≤0.6dB |
| Coupling | 30±1.0dB |
| Frequency Sensitivity | ≤±0.7dB |
| Directivity | ≥20dB |
| VSWR | ≤ 1.20:1 |
| Power Handling | ≤50Watt |
| Impedance | 50Ω |
| Port Connectors | N-Female |
| Surface Color | Silvery White |
| Wight | 160g |
Environmental Parameters
Operating Temperature -55～+85℃
Operating Humidity Up to 90%,Non- Condensing
