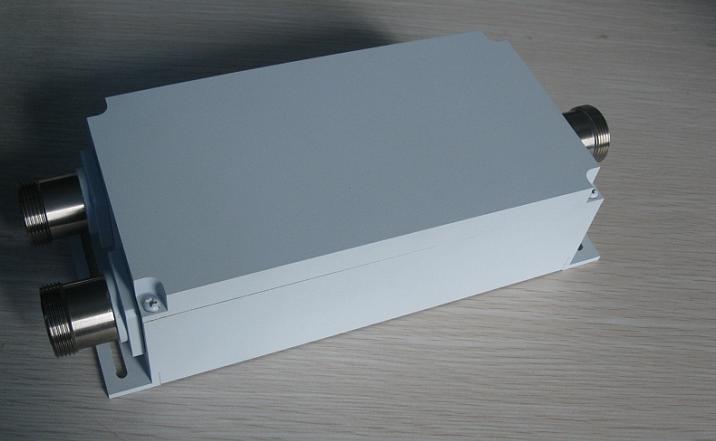

Product Details
Features
High power handling capability,Type DIN(7/16) connector models available
High reliability,Low Insertion Loss
Electrical specifications
| Parameters | Port1 (CDMA&GSM&DCS&3G) | Port2 (LTE) | |
| Frequency Range | 800～960 MHz | 1710～2170 MHz | 2500～2690MHz |
| Insertion Loss | ≤0.3dB | ≤0.3dB | ≤0.5dB |
| Ripple in Band | ≤0.2dB | ≤0.2dB | ≤0.3dB |
| VSWR | ≤1.30:1 | ≤1.30:1 | ≤1.30:1 |
| Ports Isolation | ≥80dB@2500～2690MHz | ≥80dB@800～960MHz | |
| ≥80dB@1710~2170MHz | |||
| Power | CW ≤200Watt; Peak Instantaneous ≤1500Watt | ||
| Ports Impedance | 50Ω | ||
| Connectors | DIN-Female | ||
| Surface Color | Gray | ||
| Environmental | IP66 | ||
| Wight | 1500g | ||
Environmental Parameters
Operating Temperature -25～+65℃
Operating Humidity Up to 90%,Non- Condensing
