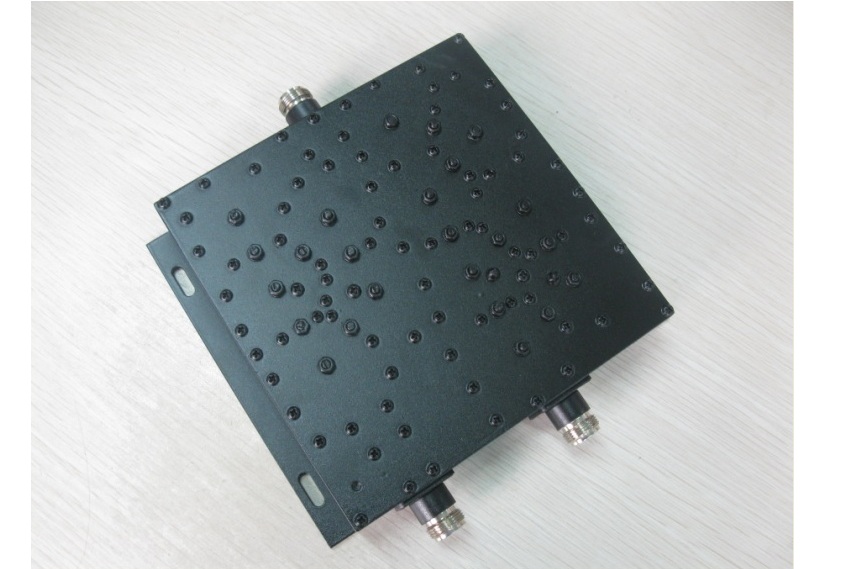

Product Details
Features
Low Insertion Loss,Low VSWR
High reliability,Type N connector models available
Electrical specifications
| Parameters | Low | High |
| Frequency Range | 1710～1755MHz | 2110～2155MHz |
| Insertion Loss | ≤1.0dB | ≤1.2dB |
| Ripple in Band | ≤0.6dB | ≤0.6dB |
| VSWR | ≤1.25:1 | ≤1.25:1 |
| Rejection | ≥65dB @2110～2155MHz | ≥65dB @1710～1755MHz |
| Power | CW ≤60Watt; Peak Instantaneous ≤600Watt | |
| Ports Impedance | 50Ω | |
| Connectors | N-Female | |
| Surface Color | Black | |
| Wight | 1200g | |
Environmental Parameters
Operating Temperature -25～+65℃
Operating Humidity Up to 90%,Non- Condensing
