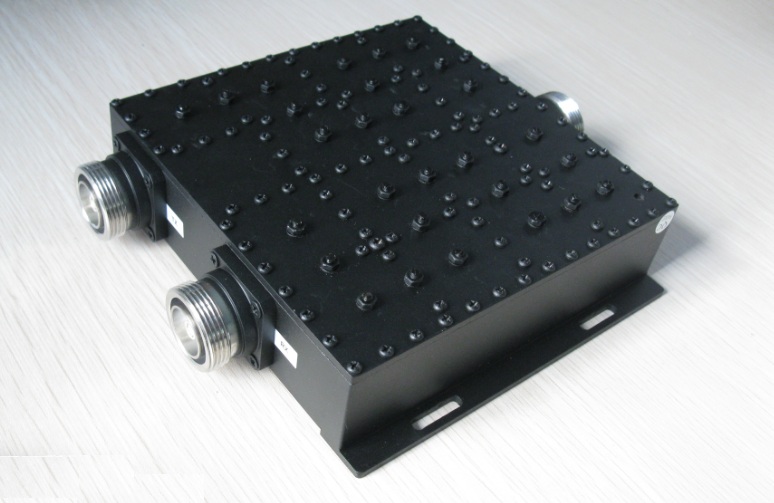

Product Details
Features
High power handling capability,Type DIN(7/16) connector models available
High Rejection,Low VSWR
Electrical specifications
| Parameters | Low | High |
| Frequency Range | 1920～1980MHz | 2110～2170MHz |
| Insertion Loss | ≤0.7dB | ≤0.7dB |
| Ripple in Band | ≤0.5dB | ≤0.5dB |
| VSWR | ≤1.30:1 | ≤1.30:1 |
| Rejection | ≥90dB @2110～2170MHz | ≥90dB @1920～1980MHz |
| Power | CW ≤200Watt; Peak Instantaneous ≤1500Watt | |
| Ports Impedance | 50Ω | |
| Connectors | DIN-Female | |
| Surface Color | Black | |
| Wight | 1500g | |
Environmental Parameters
Operating Temperature -25～+65℃
Operating Humidity Up to 90%,Non- Condensing
