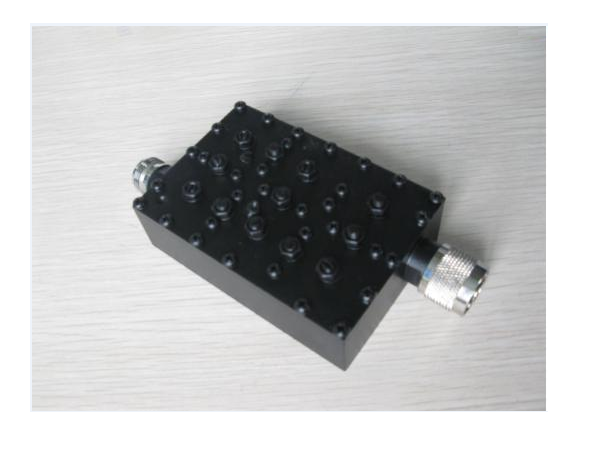

Product Details
Features
Low Insertion Loss,Low VSWR
High reliability,Type N connector models available
Electrical specifications
|
Frequency Range |
1710~1755MHz |
|
Insertion Loss |
≤1.2dB |
|
Ripple |
≤0.6dB |
|
Return Loss |
≥20dB |
|
Rejection |
≥70dB@DC~1660MHz |
|
Isolation |
≥70dB@1805MHz~2700MHz |
|
Input Power |
CW ≤50Watt; Peak Instantaneous ≤400Watt |
|
Impedance |
50Ω |
|
Connectors |
N-Female/Male |
|
Surface Finish |
Black Paint |
|
Wight |
550g |
Environmental Parameters
Operating Temperature -25～+65℃
Operating Humidity Up to 90%,Non- Condensing
