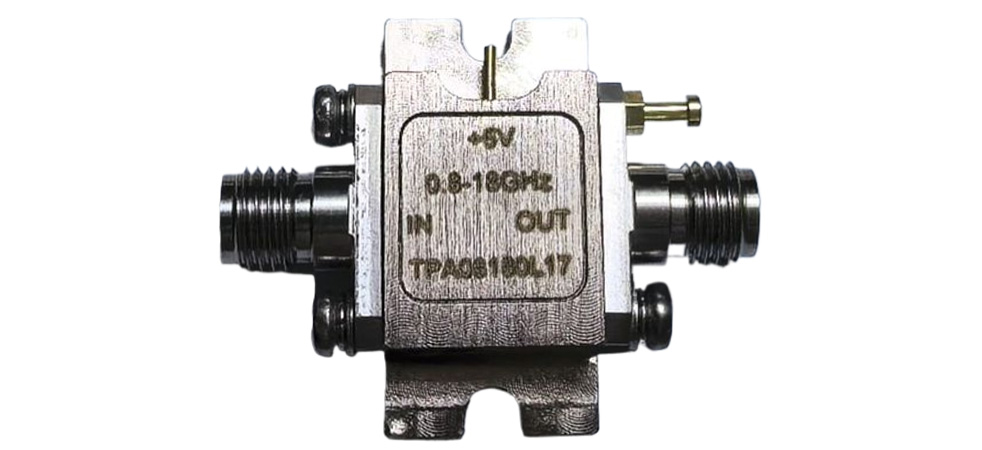

Product Details
|
Technical Data Sheet（TA=25℃，VD =+5V, Pin=3dBm） |
||||
|
Frequency Range |
0.8~18GHz |
|
Voltage/Current |
+5V/130mA
|
|
Gain
|
≤13dB |
|
Port Connectors |
SMA-Female |
|
|
|
|
Impedance |
50Ω |
|
Gain Flatness
|
≤±2.0dB |
|
Finish |
Conductive Oxidation |
|
Noise Figure |
≤1.6dB |
|
Connector Body |
Passivated Stainless Steel |
|
VSWR |
≤2.50:1 |
|
Housing |
Aluminum, 6061 T6 Clear Chem Conversion Film |
|
Output 1dB Compression Point (P1dB) |
≥17dBm |
|
Connector Pin |
Beryllium Copper, Gold Plate |
|
Saturated Output Power (Psat) |
≥18dBm |
|
Operating Temp. |
-55～+85℃ |
|
Isolation S12 |
≤-20dB |
|
Operating Humidity |
Up to 90%,Non- Condensing |
