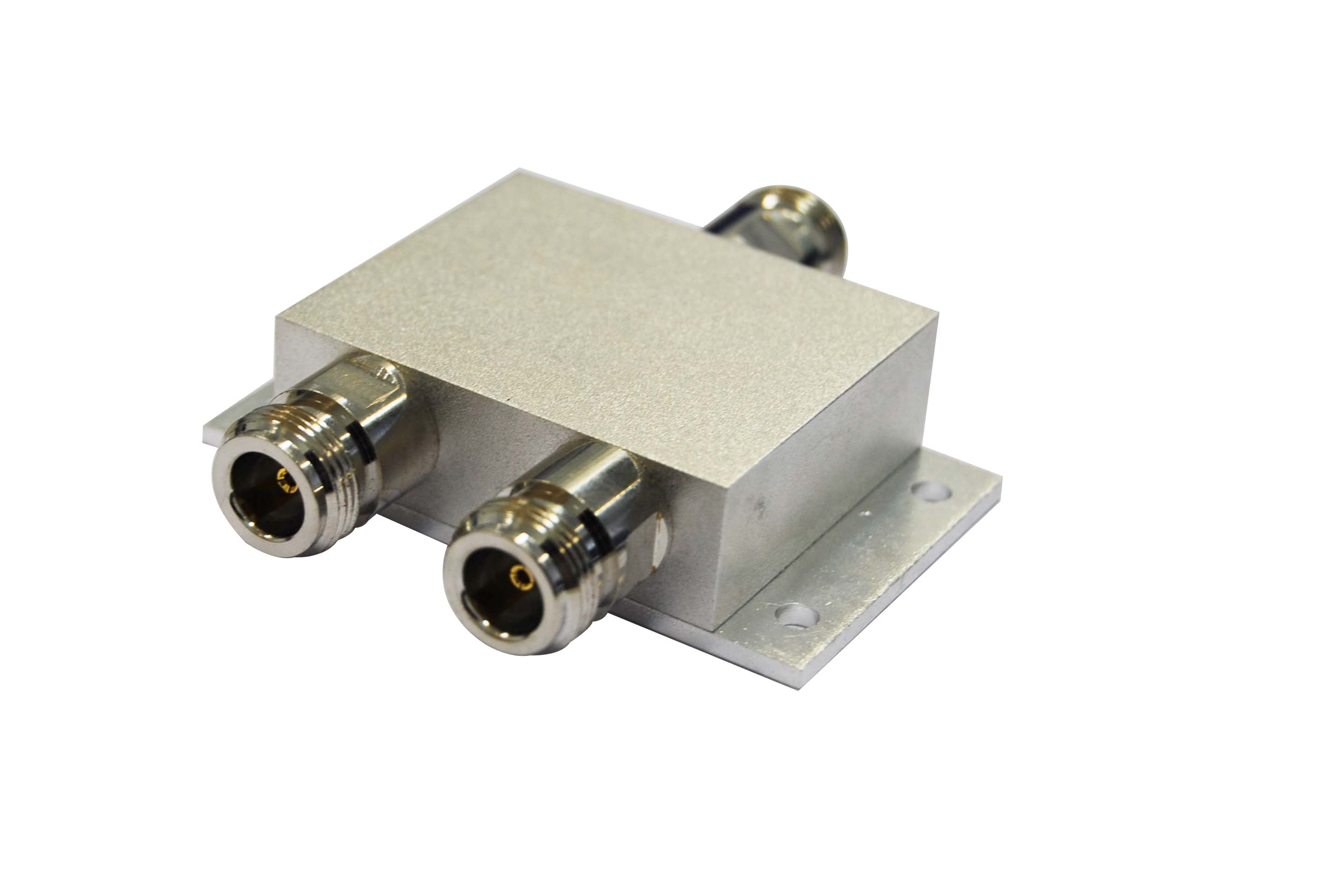

Product Details
Features
Ultra-Wideband,High Reliability
Low Insertion Loss,Low VSWR, High Isolation
Electrical specifications
| Frequency Range | 0.8~2.5GHz |
| Insertion Loss | ≤0.4dB |
| Isolation | ≥22dB |
| VSWR | ≤ 1.20:1 |
| Amplitude Balance | ≤±0.2dB |
| Phase Balance | ≤±2° |
| Power Handling | Forward ≤30Watt; Reversed ≤2Watt |
| Impedance | 50Ω |
| Port Connectors | N-Female |
| Surface Color | Silvery White |
| Wight | 110g |
Environmental Parameters
Operating Temperature -55～+85℃
Operating Humidity Up to 90%,Non- Condensing
