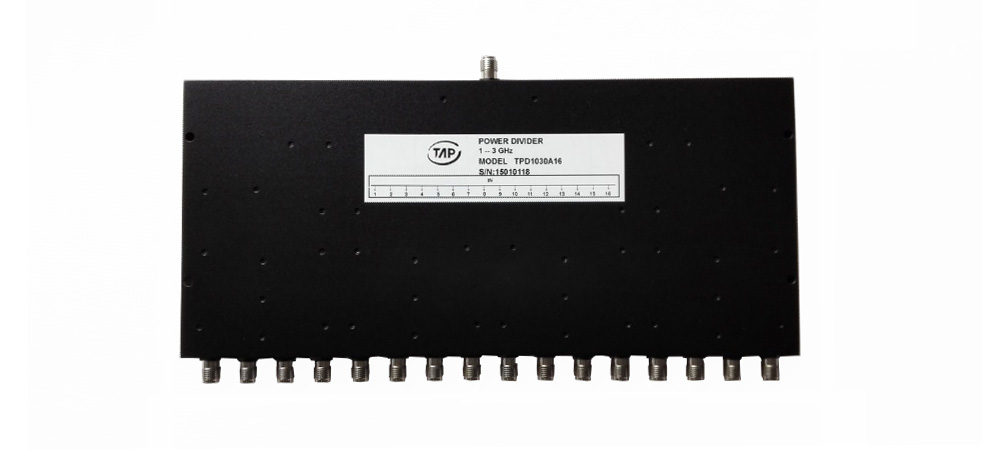

Product Details
| Technical Data Sheet | ||||
| Frequency Range | 1~3GHz | Finish | Painted Blue_ RAL #5007 | |
| Insertion Loss | ≤1.8dB
(Above 12.04dB Split) |
Connector Body | Brass, Tri-Alloy Plate | |
| VSWR | Input ≤1.40:1
Output ≤1.30:1 |
Housing | Aluminum, 6061 T6
Clear Chem Conversion Film |
|
| Isolation | ≥18dB | Connector Pin | Beryllium Copper, Gold Plate | |
| Amplitude Balance | ≤±0.5dB | Solder | Lead Free, RoHS Compliant | |
| Phase Balance | ≤±5° | Operating Temperature | -55～+85℃ | |
| 1Power Handling | Forward ≤30Watt;
Reversed ≤1Watt |
Operating Humidity | Up to 95%,Non- Condensing | |
| Impedance | 50Ω | Weight | ||
| Port Connectors | SMA-Female | |||
1Power Handling guaranteed when load’s VSWR within 1.50:1
