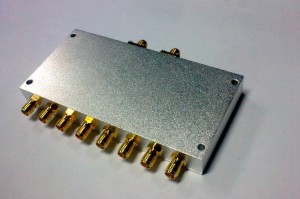

THC2040A8W 2-4GHz 8 way hybrid power divider
Features
Ultra-Wideband,Compact Size,High Reliability
Low Insertion Loss,Low VSWR, High Isolation
Electrical specifications
| Frequency Range | 2~4GHz |
| Coupling | 9.1±0.6dB |
| Isolation | ≥20dB |
| VSWR | ≤ 1.30:1 |
| Frequency Sensitivity | ≤±0.5dB |
| Phase Balance | ≤±5° |
| Power Handling | ≤20Watt |
| Impedance | 50Ω |
| Port Connectors | SMA-Female |
| Surface Color | Black |
| Wight | 220g |
Environmental Parameters
Operating Temperature -55～+85℃
Operating Humidity Up to 90%,Non- Condensing
