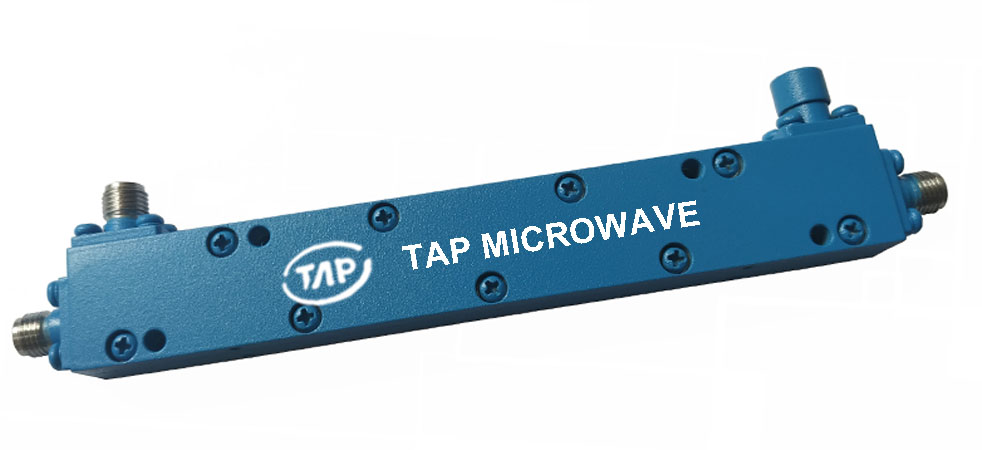

TDC0365A10 0.375-6.5GHz 10dB Directional Coupler

 Technical Data Sheet  Frequency Range  0.375~6.5GHz    Port Connectors  SMA-Female  Insertion Loss  ≤0.7dB (Excl. Coupling  Loss 0.46dB)    Finish  Pa ...
Product Details

 Technical Data Sheet

 Frequency Range

 0.375~6.5GHz



 Port Connectors

 SMA-Female

 Insertion Loss

 ≤0.7dB (Excl. Coupling

 Loss 0.46dB)



 Finish

 Painted Blue_ RAL #5007

 Coupling Factor

 ≤10±1.0dB



 Connector Body

 Passivated Stainless Steel

 Coupling Sensitivity

 ≤±1.0dB



 Housing

 Aluminum, 6061 T6

 Clear Chem Conversion Film

 Directivity

 ≥15dB



 Connector Pin

 Beryllium Copper, Gold Plate

 Insertion Loss

 Consistency

≤±0.1dB



 Solder

 Lead Free, RoHS Compliant

 Coupling Sensitivity

 Consistency

≤±0.25dB



 Operating Temperature

 -55~+85℃

 VSWR

 Primary ≤1.20:1

 Secondary ≤1.20:1



 Operating Humidity

 Up to 95%,Non- Condensing

 1Power Handling

 Incident ≤50Watt;

 Reflected ≤2Watt





 Weight

 70g

 Impedance

 50Ω







1Power Handling guaranteed when load’s VSWR within 1.50:1.
