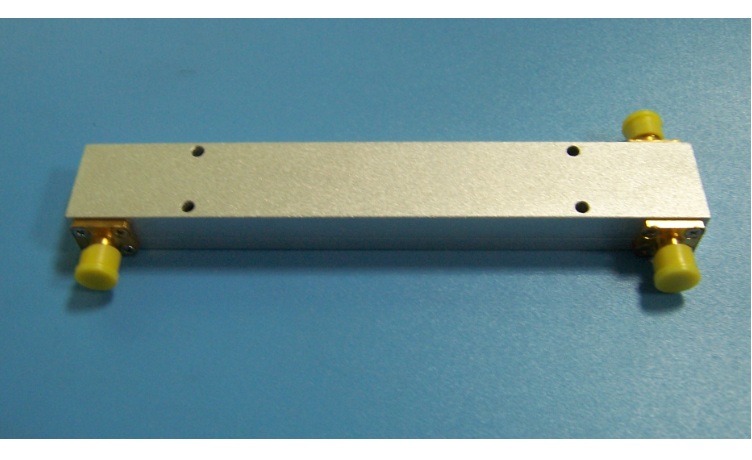

Product Details
Features
Octave Models,Compact Size,High Reliability
Low Insertion Loss, High Directivity
Electrical specifications
| Frequency Range | 0.4~0.8GHz |
| Insertion Loss | ≤0.5dB |
| Coupling | 10±0.5dB |
| Frequency Sensitivity | ≤±0.5dB |
| Directivity | ≥22dB |
| VSWR | ≤ 1.20:1 |
| Power Handling | ≤50Watt |
| Impedance | 50Ω |
| Port Connectors | SMA-Female |
| Surface Color | Silvery White |
| Wight | 85g |
Environmental Parameters
Operating Temperature -55～+85℃
Operating Humidity Up to 90%,Non- Condensing
