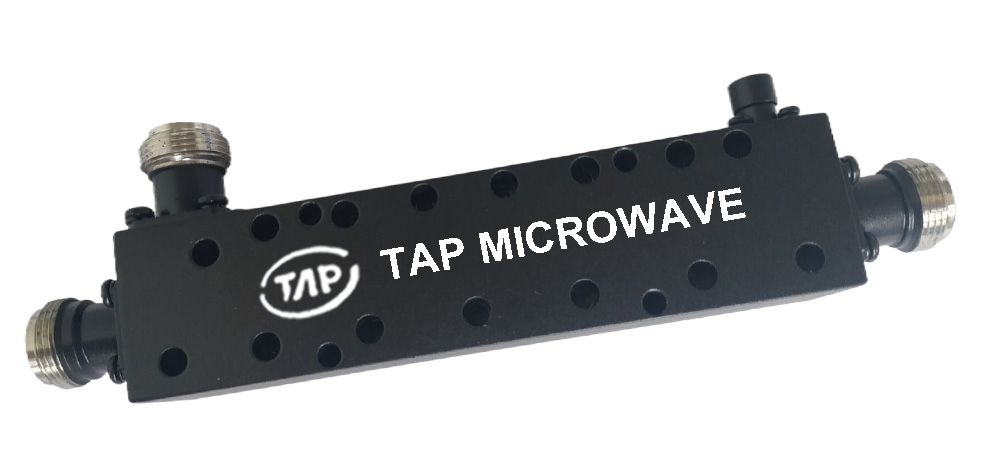

TDC0580N20H 0.5-8GHz 20dB Directional Coupler

 Technical Data Sheet  Frequency Range  0.5~8.0GHz    Finish  Natural oxygen  Insertion Loss  ≤0.7dB (Excl. Coupling  Loss 0.04dB)    Connector Body ...
Product Details

 Technical Data Sheet

 Frequency Range

 0.5~8.0GHz



 Finish

 Natural oxygen

 Insertion Loss

 ≤0.7dB (Excl. Coupling

 Loss 0.04dB)



 Connector Body

 Brass, Tri-Alloy Plate

 Coupling Factor

 ≤20±1dB



 Housing

 Aluminum, 6061 T6

 Clear Chem Conversion Film

 Coupling Sensitivity

 ≤±1.0dB



 Connector Pin

 Beryllium Copper, Gold Plate

 Directivity

 ≥12dB



 Solder

 Lead Free, RoHS Compliant

 VSWR

 Primary ≤1.40:1

 Secondary ≤1.40:1



 Operating Temperature

 -40~+85℃

 1Power Handling

 Incident ≤150Watt;

 Reflected ≤10Watt





 Operating Humidity

 Up to 95%,Non- Condensing

 Impedance

 50Ω



 Weight

 260g

 Port Connectors

 N-Female







1Power Handling guaranteed when load’s VSWR within 1.50:1.
