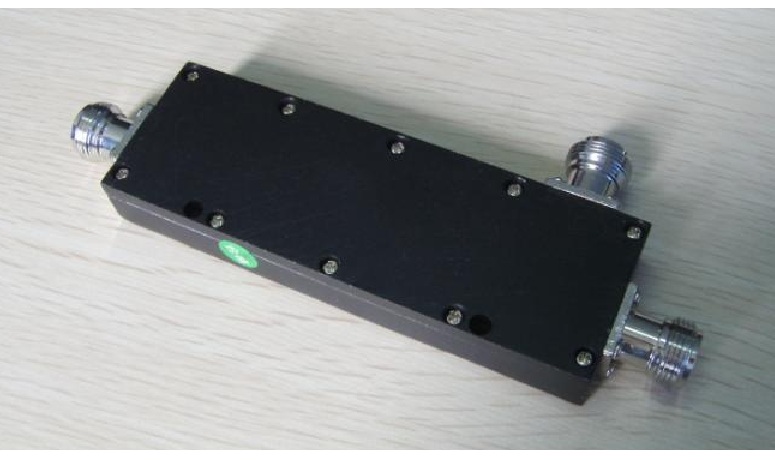

Product Details
Features
Ultra-Wideband,Compact Size,High Reliability
Low Insertion Loss, High Power Handling
Electrical specifications
| Frequency Range | 0.8~2.5GHz |
| Insertion Loss | ≤0.4dB |
| Coupling | 25±1.0dB |
| Frequency Sensitivity | ≤±1.0dB |
| Directivity | ≥20dB |
| VSWR | ≤ 1.30:1 |
| Power Handling | ≤200Watt |
| Impedance | 50Ω |
| Port Connectors | N-Female |
| Surface Color | Black |
| Wight | 160g |
Environmental Parameters
Operating Temperature -40～+70℃
Operating Humidity Up to 90%,Non- Condensing
