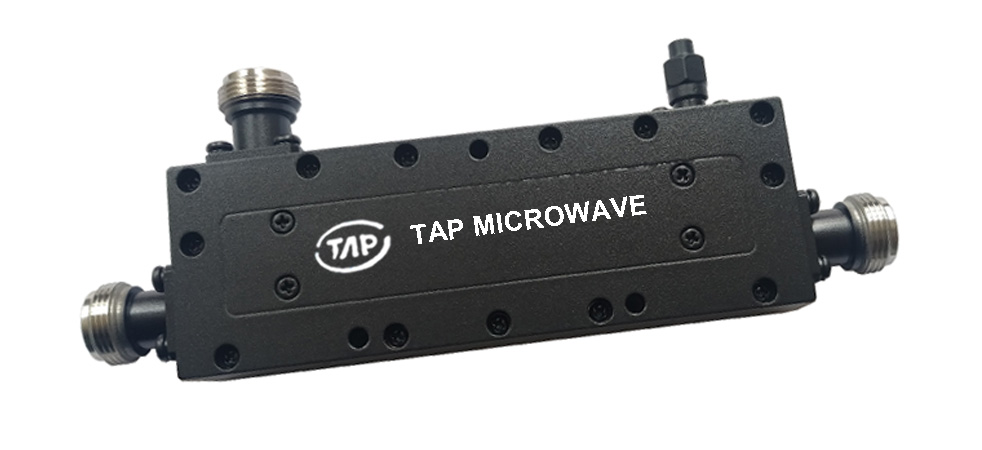

TDC0909H30 914-916MHz 30dB Directional Coupler

 Technical Data Sheet  Frequency Range  914~916MHz    Finish  Painted Blue_ RAL #5007  Insertion Loss  ≤0.2dB (Excl. Coupling  Loss 0.04dB)    Connec ...
Product Details

 Technical Data Sheet

 Frequency Range

 914~916MHz



 Finish

 Painted Blue_ RAL #5007

 Insertion Loss

 ≤0.2dB (Excl. Coupling

 Loss 0.04dB)



 Connector Body

 Brass, Nickel Plate

 Coupling Factor

 ≤30±1.0dB



 Housing

 Aluminum, 6061 T6

 Clear Chem Conversion Film

 Coupling Sensitivity

 ≤±0.5dB



 Connector Pin

 Beryllium Copper, Gold Plate

 Directivity

 ≥22dB



 Solder

 Lead Free, RoHS Compliant

 VSWR

 Primary ≤1.20:1

 Secondary ≤1.20:1



 Operating Temperature

 -40~+85℃

 1Power Handling

 Incident ≤300Watt;

 Reflected ≤50Watt





 Operating Humidity

 Up to 95%,Non- Condensing

 Impedance

 50Ω



 Weight

 280g

 Port Connectors

 N-Female







1Power Handling guaranteed when load’s VSWR within 1.50:1.
