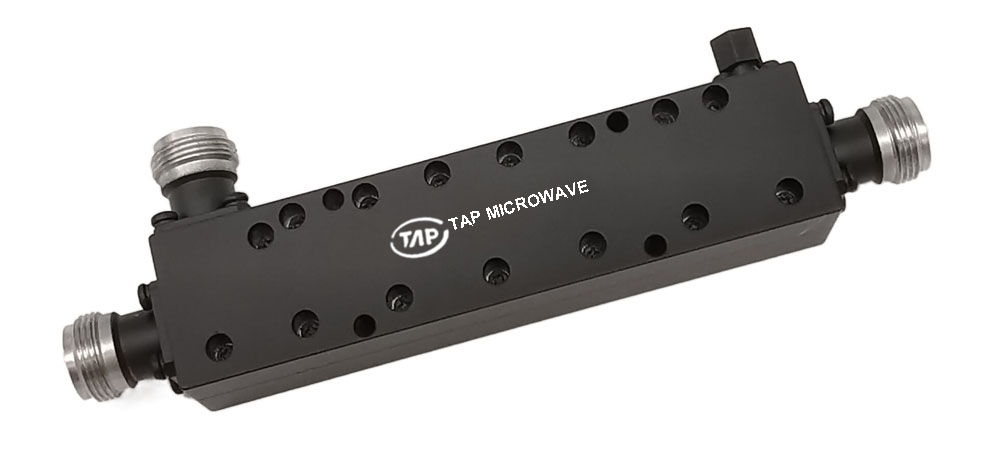

TDC0914N10 950-1450MHz 10dB directional coupler

 Technical Data Sheet  Frequency Range  950~1450MHz    Finish  Painted Blue_ RAL #5007  Insertion Loss  ≤0.3dB (Excl. Coupling  Loss 0.46dB)    Conne ...
Product Details

 Technical Data Sheet

 Frequency Range

 950~1450MHz



 Finish

 Painted Blue_ RAL #5007

 Insertion Loss

 ≤0.3dB (Excl. Coupling

 Loss 0.46dB)



 Connector Body

 Passivated Stainless Steel

 Coupling Factor

 ≤10±1.0dB



 Housing

 Aluminum, 6061 T6

 Clear Chem Conversion Film

 Coupling Sensitivity

 ≤±1.0dB



 Connector Pin

 Beryllium Copper, Gold Plate

 Directivity

 ≥20dB



 Solder

 Lead Free, RoHS Compliant

 VSWR

 Primary ≤1.22:1

 Secondary ≤1.22:1



 Operating Temperature

 -55~+85℃

 1Power Handling

 Incident ≤50Watt;

 Reflected ≤2Watt





 Operating Humidity

 Up to 95%,Non- Condensing

 Impedance

 50Ω



 Weight

 260g

 Port Connectors

 SMA-Female







1Power Handling guaranteed when load’s VSWR within 1.50:1.
