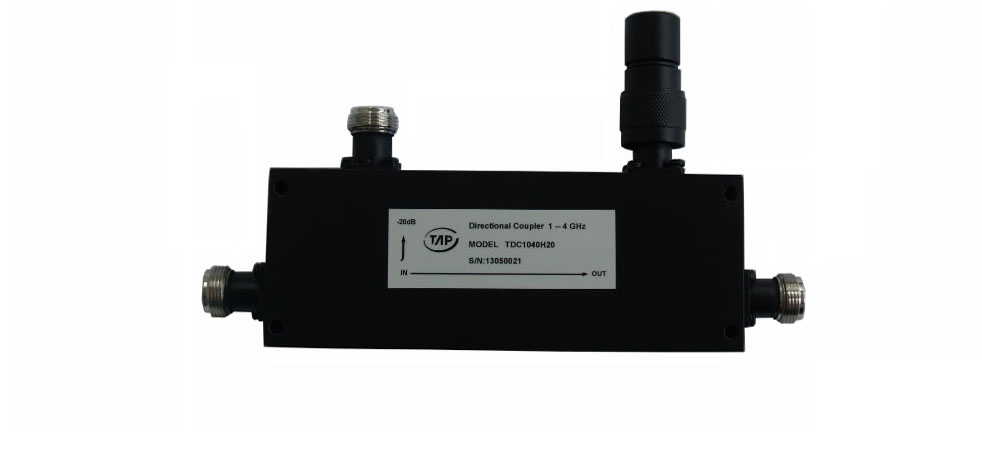

TDC1040H20 1-4GHz 20dB 500W Directional Coupler

   Technical Data Sheet  Frequency Range  1~4GHz    Finish  Painted Blue_ RAL #5007  Insertion Loss  ≤0.3dB (Excl. Coupling   Loss 0.04dB)    Connector Body  Brass, N ...
Product Details



 Technical Data Sheet
 Frequency Range  1~4GHz    Finish  Painted Blue_ RAL #5007
 Insertion Loss  ≤0.3dB (Excl. Coupling



Loss 0.04dB)

   Connector Body  Brass, Nickel Plate
 Coupling Factor  ≤20±0.7dB    Housing  Aluminum, 6061 T6



Clear Chem Conversion Film

 Coupling Sensitivity  ≤±0.7dB    Connector Pin  Beryllium Copper, Gold Plate
 Directivity  ≥20dB    Solder  Lead Free, RoHS Compliant
 VSWR  Primary ≤1.25:1



Secondary ≤1.25:1

   Operating Temperature  -40~+85℃
 1Power Handling  Incident ≤400Watt;



Reflected ≤50Watt

   Operating Humidity  Up to 95%,Non- Condensing
 Impedance  50Ω    Weight  550g
 Port Connectors  N-Female

1Power Handling guaranteed when load’s VSWR within 1.50:1.
