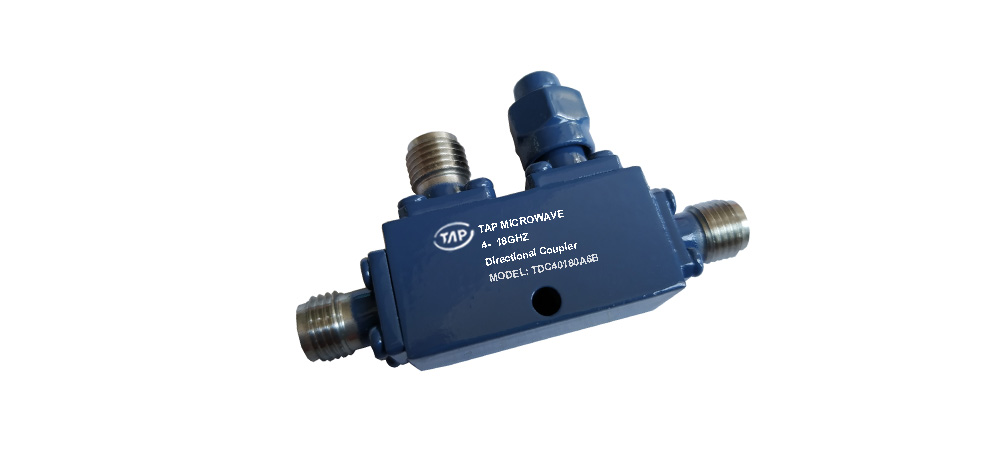

Product Details
|
Technical Data Sheet |
||||
|
Frequency Range |
4~18GHz |
|
Finish |
Painted Blue_ RAL #5007 |
|
Insertion Loss |
≤0.7dB (Excl. Coupling Loss 1.26dB) |
|
Connector Body |
Passivated Stainless Steel |
|
Coupling Factor |
≤6±0.7dB |
|
Housing |
Aluminum, 6061 T6 Clear Chem Conversion Film |
|
Coupling Sensitivity |
≤±0.7dB |
|
Connector Pin |
Beryllium Copper, Gold Plate |
|
Directivity |
≥17dB@4-12.4GHz ≥12dB@12.4-18GHz |
|
Solder |
Lead Free, RoHS Compliant |
|
VSWR |
Primary ≤1.40:1 Secondary ≤1.40:1 |
|
Operating Temperature |
-55～+85℃ |
|
1Power Handling |
Incident ≤50Watt; Reflected ≤2Watt |
|
Operating Humidity |
Up to 95%,Non- Condensing |
|
Impedance |
50Ω |
|
Weight |
20g |
|
Port Connectors |
SMA-Female |
|
|
|
1Power Handling guaranteed when load’s VSWR within 1.50:1.
