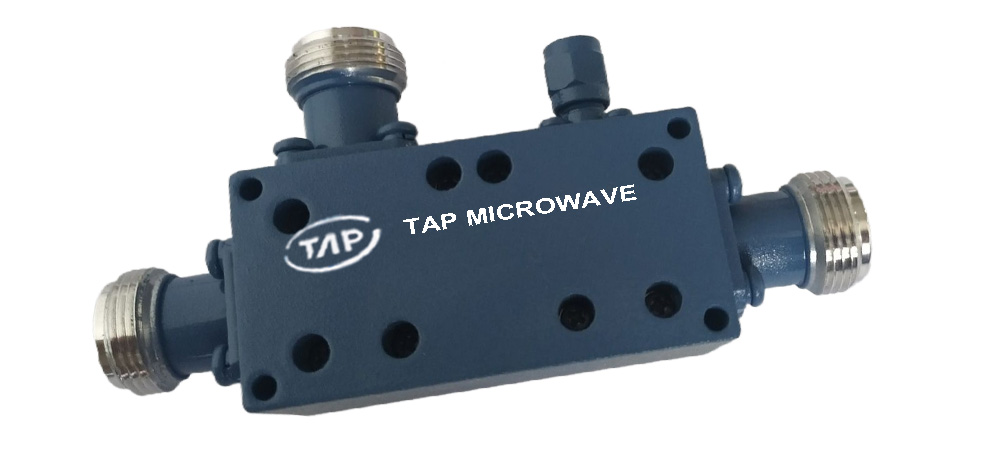

TDC7090N10 7-9GHz 10dB directional coupler

 Technical Data Sheet  Frequency Range  7~9GHz    Finish Painted Blue_ RAL #5007  Insertion Loss  ≤0.6dB (Excl. Coupling  Loss 0.46dB)    Connector B ...
Product Details

 Technical Data Sheet

 Frequency Range

 7~9GHz



 Finish

Painted Blue_ RAL #5007

 Insertion Loss

 ≤0.6dB (Excl. Coupling

 Loss 0.46dB)



 Connector Body

 Passivated Stainless Steel

 Coupling Factor

 ≤10±0.7dB



 Housing

 Aluminum, 6061 T6

 Clear Chem Conversion Film

 Coupling Sensitivity

 ≤±0.7dB



 Connector Pin

 Beryllium Copper, Gold Plate

 Directivity

 ≥15dB



 Solder

 Lead Free, RoHS Compliant

 VSWR

 Primary ≤1.50:1

 Secondary ≤1.50:1



 Operating Temperature

 -40~+85℃

 1Power Handling

 Incident ≤50Watt;

 Reflected ≤50Watt





 Operating Humidity

 Up to 95%,Non- Condensing

 Impedance

 50Ω



 Weight

 160g

 Port Connectors

 N-Female







1Power Handling guaranteed when load’s VSWR within 1.50:1.
