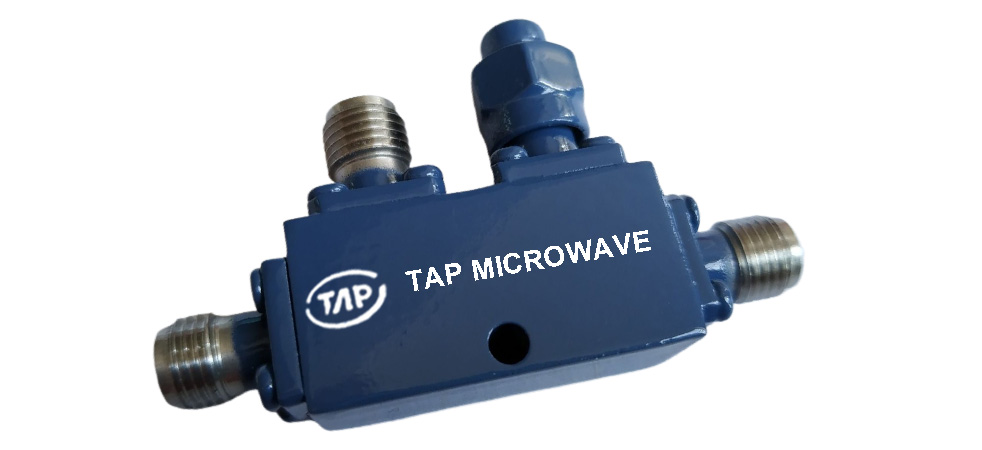

TDC75160A20B 7.5-16GHz 20dB Directional Coupler

 Technical Data Sheet  Frequency Range  7.5~16GHz    Finish  Painted Blue_ RAL #5007  Insertion Loss  ≤0.6dB (Excl.&n ...
Product Details

 Technical Data Sheet

 Frequency Range

 7.5~16GHz



 Finish

 Painted Blue_ RAL #5007

 Insertion Loss

 ≤0.6dB (Excl. Coupling

 Loss 0.04dB)



 Connector Body

 Passivated Stainless Steel

 Coupling Factor

 ≤20±0.7dB



 Housing

 Aluminum, 6061 T6

 Clear Chem Conversion Film

 Coupling Sensitivity

 ≤±0.6dB



 Connector Pin

 Beryllium Copper, Gold Plate

 Directivity

 ≥15dB



 Solder

 Lead Free, RoHS Compliant

 VSWR

 Primary ≤1.35:1

 Secondary ≤1.40:1



 Operating Temperature

 -55~+85℃

 1Power Handling

 Incident ≤50Watt;

 Reflected ≤2Watt





 Operating Humidity

 Up to 95%,Non- Condensing

 Impedance

 50Ω



 Weight

 30g

 Port Connectors

 SMA-Female







1Power Handling guaranteed when load’s VSWR within 1.50:1.
