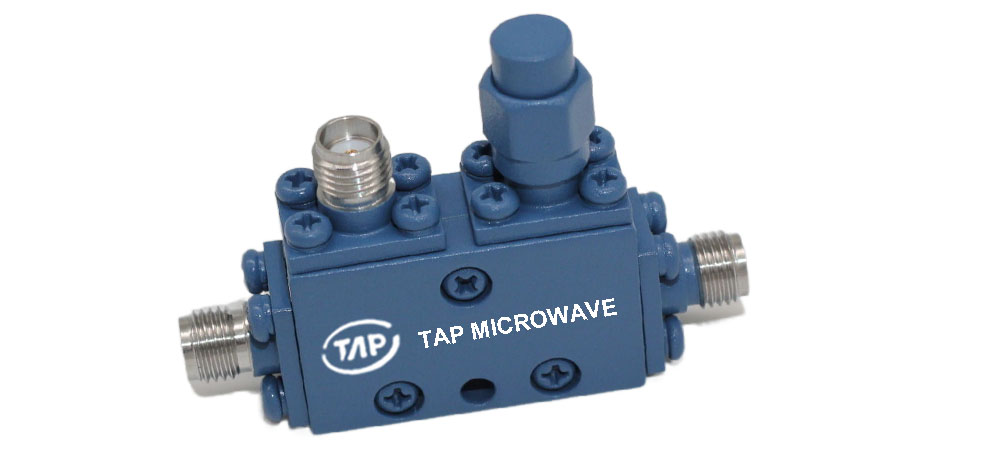

TDC80200A20B 8-20GHz 20dB Directional Coupler

 Technical Data Sheet  Frequency Range  8~20GHz    Finish  Painted Blue_ RAL #5007  Insertion Loss  ≤1.0dB (True) ...
Product Details

 Technical Data Sheet

 Frequency Range

 8~20GHz



 Finish

 Painted Blue_ RAL #5007

 Insertion Loss

 ≤1.0dB (True)



 Connector Body

 Passivated Stainless Steel

 Coupling Factor

 ≤20±1.0dB



 Housing

 Aluminum, 6061 T6

 Clear Chem Conversion Film

 Coupling Sensitivity

 ≤±0.8dB



 Connector Pin

 Beryllium Copper, Gold Plate

 Directivity

 ≥12dB



 Solder

 Lead Free, RoHS Compliant

 VSWR

 Primary ≤1.50:1

 Secondary ≤1.50:1



 Operating Temperature

 -55~+85℃

 1Power Handling

 Incident ≤25Watt;

 Reflected ≤25Watt





 Operating Humidity

 Up to 95%,Non- Condensing

 Impedance

 50Ω



 Weight

 30g

 Port Connectors

 SMA-Female







1Power Handling guaranteed when load’s VSWR within 1.50:1.
