Quadruplexer

TDU00014N CELL PCS Quadruplexer

Features High Rejection,Low Insertion Loss High reliability,Compact size Electrical specifications  Parameters  UPLINK  DWNLINK  Frequency Range  CELL  824~849MHz ...
Product Details

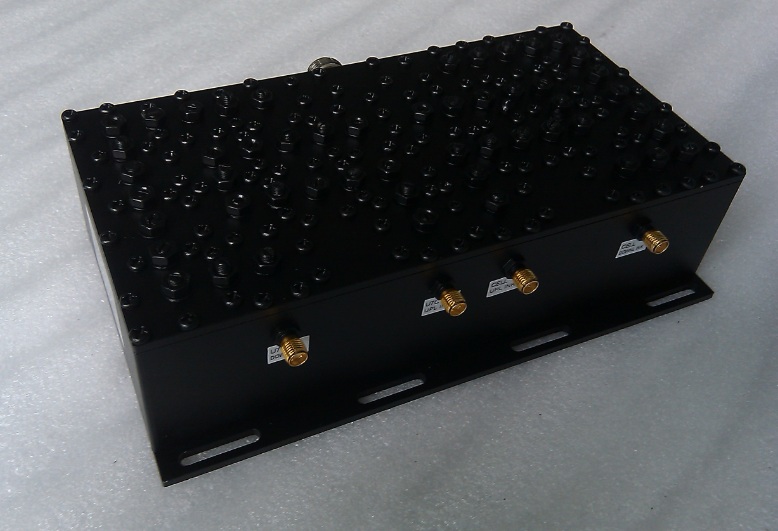

TDU00014N CELL PCS Quadruplexer

Features

High Rejection,Low Insertion Loss

High reliability,Compact size

Electrical specifications

 Parameters

 UPLINK

 DWNLINK

 Frequency Range

 CELL

 824~849MHz

 869~894MHz

 PCS

 1850~1910MHz

 1930~1990MHz

 Insertion Loss

 CELL≤2.5dB; PCS≤3.0dB

 Ripple in Band

 ≤1.5dB

 ≤1.5dB

 VSWR

 ≤1.30:1

 ≤1.30:1

 Rejection

 CELL

 ≥70dB@869~894MHz

  ≥70dB@824~849MHz

 PCS

 ≥70dB@1930~1990MHz

 ≥70dB@1850~1910MHz

 Power

 CW ≤50Watt; Peak Instantaneous ≤500Watt

 Ports Impedance

 50Ω

 Connectors

 Com:N-Female; Others:SMA-Female

 Surface Color

 Black

 Wight

 2100g

Environmental Parameters

Operating Temperature -0~+40℃

Operating Humidity Up to 90%,Non- Condensing
