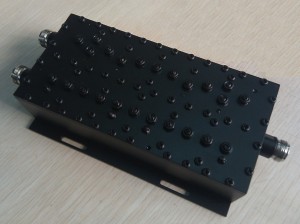

Product Details
Features
Combine LTE 700 & Cellular signal
Low Insertion Loss,Type N connector models available
Electrical specifications
| Parameters | Low | High |
| Frequency Range | 740~795MHz | 820~900MHz |
| Insertion Loss | ≤0.3dB@767.5MHz | ≤0.3dB@860MHz |
| Ripple at BW | ≤0.3dB | ≤0.3dB |
| Return Loss | ≥15dB | ≥15dB |
| Rejection | ≥30dB@820~900MHz | ≥30dB@740~795MHz |
| Isolation | ≥40dB@700MHz，1000MHz | |
| Input Power | CW ≤50Watt; Peak Instantaneous ≤400Watt | |
| Impedance | 50Ω | |
| Connectors | N-Female | |
| Surface Finish | Black Paint | |
| Wight | 750g | |
Environmental Parameters
Operating Temperature -25～+65℃
Operating Humidity Up to 90%,Non- Condensing
