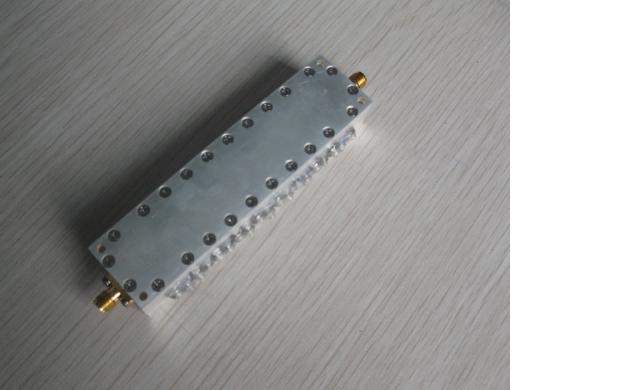

Product Details
Features
Ultra-Wideband,High Reliability
This filter usually used for measuring, EW and communication fields,selecting and rejection wideband signal
Electrical specifications
| Frequency Range | 7.75~8.25GHz |
| Insertion Loss | ≤2.0dB |
| VSWR | ≤1.50:1 |
| Rejection | ≥50dB@5GHz; ≥50dB@12GHz |
| Power Handling | CW ≤10Watt; Peak Instantaneous ≤50Watt |
| Impedance | 50Ω |
| Port Connectors | SMA-Female |
| Surface Color | Silvery White |
| Wight | 50g |
Environmental Parameters
Operating Temperature -55～+85℃
Operating Humidity Up to 90%,Non- Condensing
