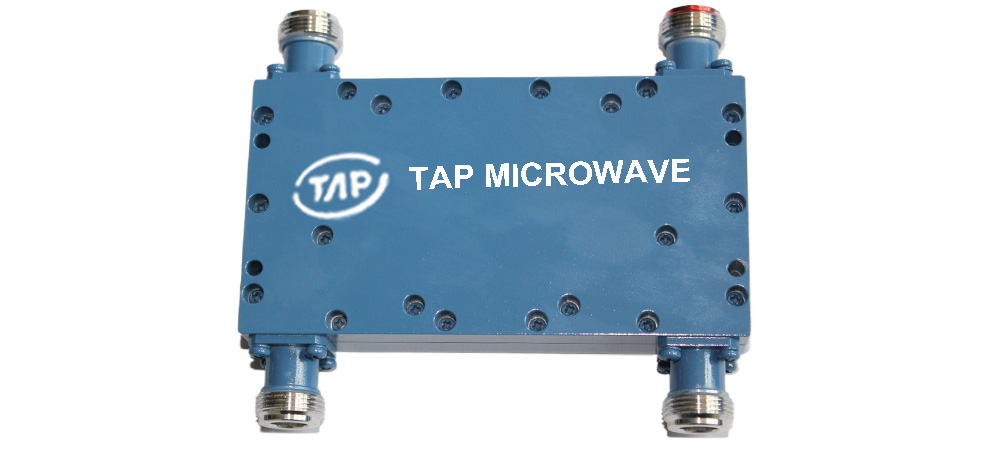

THC0105N 150-520MHz 90 degree Hybrid Coupler

Technical Data Sheet  Frequency Range  150~520MHz    Finish  Painted Blue_ RAL #5007  Nominal Split  3 ...
Product Details
Technical Data Sheet
 Frequency Range  150~520MHz    Finish  Painted Blue_ RAL #5007
 Nominal Split  3.01dB    Connector Body  Passivated Stainless Steel
 Insertion Loss  ≤0.6dB    Housing  Aluminum, 6061 T6  Clear Chem Conversion Film
 Isolation  ≥18dB
 Amplitude Balance  ≤±0.6dB    Connector Pin  Beryllium Copper, Gold Plate
 Phase Balance  ≤±5°    Solder  Lead Free, RoHS Compliant
 VSWR  ≤1.30:1    Operating Temperature   -55~+85℃
 1Power Handling  Average ≤100Watt  Peak ≤1KW      Operating Humidity   Up to 95%,Non- Condensing
 Impedance  50Ω    Weight  490g
 Port Connectors  N-Female

1Power Handling guaranteed when load’s VSWR within 1.50:1.
