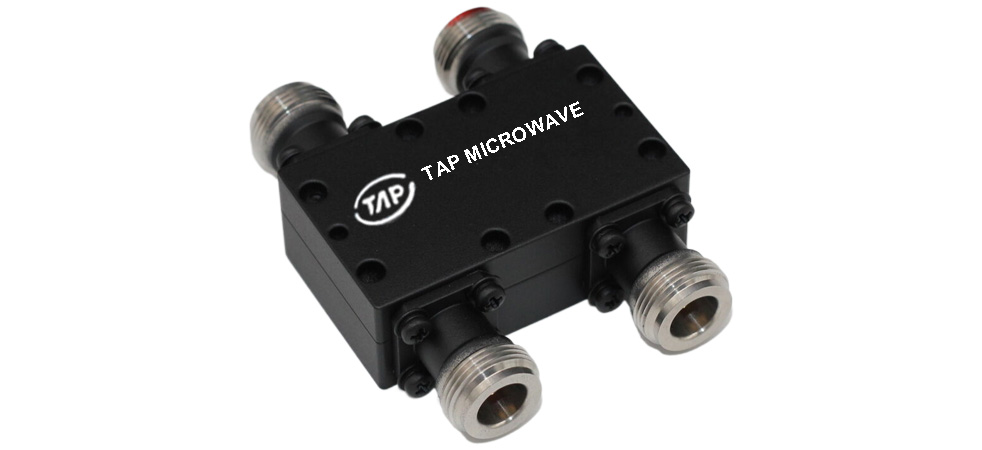

THC2060NH 2-6GHz 3dB 90 degree Hybrid Coupler

Technical Data Sheet  Frequency Range  2~6GHz    Finish  Painted Blue_ RAL #5007  Nominal Split  3.01dB    C ...
Product Details

Technical Data Sheet

 Frequency Range

 2~6GHz



 Finish

 Painted Blue_ RAL #5007

 Nominal Split

 3.01dB



 Connector Body

 Passivated Stainless Steel

 Insertion Loss

 ≤0.7dB



 Housing

 Aluminum, 6061 T6

 Clear Chem Conversion Film

 Isolation

 ≥18dB

 Amplitude Balance

 ≤±0.6dB



 Connector Pin

 Beryllium Copper, Gold Plate

 Phase Balance

 ≤±5°



 Solder

 Lead Free, RoHS Compliant

 VSWR

 ≤1.30:1



 Operating Temperature

 -55~+85℃

 1Power Handling

 Average ≤125Watt

 Peak ≤3KW





 Operating Humidity

 Up to 95%,Non- Condensing

 Impedance

 50Ω



 Weight

 170g

 Port Connectors

 N-Female







1Power Handling guaranteed when load’s VSWR within 1.50:1.
