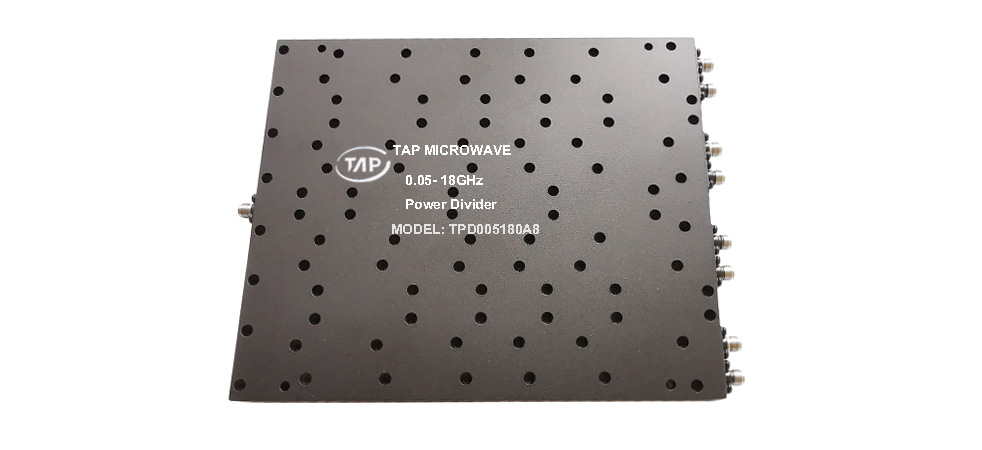

TPD005180A8 0.05-18GHz 8 way Power Divider

 Technical Data Sheet

 Frequency Range

 0.05~18GHz

 Finish

 Painted Blue_ RAL #5007

 Insertion Loss

 ≤10.0dB

 (Above 9.03dB Split)

 Connector Body

 Passivated Stainless Steel

 VSWR

 Input ≤5.50:1@0.05-0.5GHz

      ≤1.80:1@0.5-18GHz

 Output≤4.2:1@0.05-0.4GHz

      ≤1.80:1@0.4-18GHz

 Housing

 Aluminum, 6061 T6

 Clear Chem Conversion Film

 Isolation

 ≥2dB@0.05-0.4GHz

 ≥13dB@0.4-18GHz

 Connector Pin

 Beryllium Copper, Gold Plate

 Amplitude Balance

 ≤±1.5dB

 Solder

 Lead Free, RoHS Compliant

 Phase Balance

 ≤±16°

 Operating Temperature

 -55～+85℃

 ¹Power Handling

 Forward ≤5Watt;

 Reversed ≤1Watt

 Operating Humidity

 Up to 95%,Non- Condensing

 Impedance

 50Ω

 Weight

 1160g

 Port Connectors

 SMA-Female
