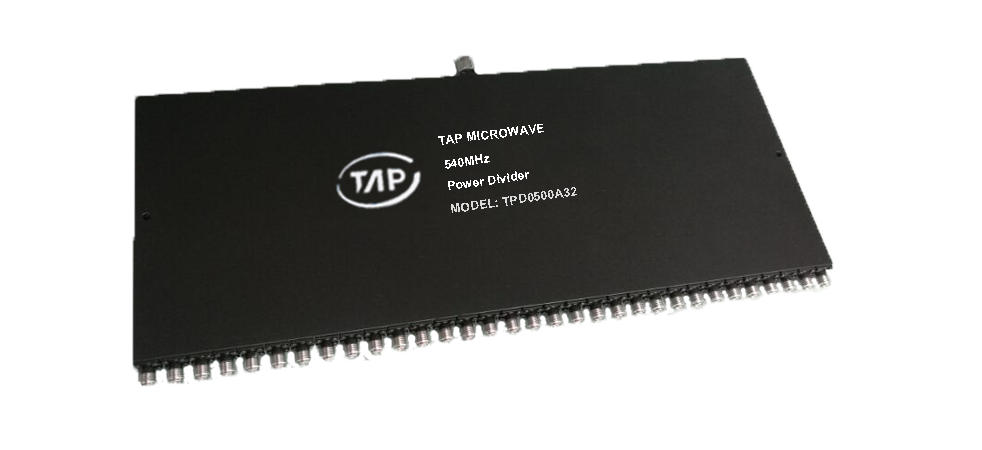

TPD0500A32 540MHz 32 way power divider

 Technical Data Sheet  Frequency Range  510~570MHz  Finish  Painted Blue_ RAL #5007  Insertion Loss  ≤1.6dB (Above 15.05dB Split)  Connector Body  Passivated Stainless Ste ...
Product Details
 Technical Data Sheet
 Frequency Range  510~570MHz  Finish  Painted Blue_ RAL #5007
 Insertion Loss  ≤1.6dB

(Above 15.05dB Split)

 Connector Body  Passivated Stainless Steel
 VSWR  Input   ≤1.50:1

Output  ≤1.25:1

 Housing  Aluminum, 6061 T6

Clear Chem Conversion Film

 Isolation  ≥20dB  Connector Pin  Beryllium Copper, Gold Plate
 Amplitude Balance  ≤±0.6dB  Solder  Lead Free, RoHS Compliant
 Phase Balance  ≤±5°  Operating Temperature  -55~+85℃
 1Power Handling  Forward ≤30Watt;

Reversed ≤1Watt

 Operating Humidity  Up to 95%,Non- Condensing
 Impedance  50Ω  Weight  1020g
 Port Connectors  SMA-Female
