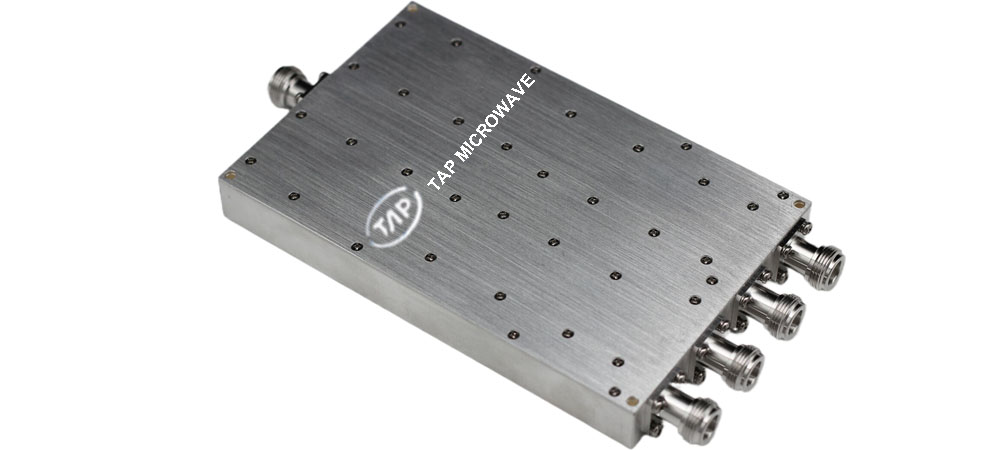

Product Details
|
Technical Data Sheet |
||||
|
Frequency Range |
0.5~6.0GHz |
|
Finish |
Natural oxygen |
|
Insertion Loss |
≤1.9dB (Above 6.02dB Split) |
|
Connector Body |
Brass, Tri-Alloy Plate |
|
VSWR |
Input ≤1.60:1 Output ≤1.40:1 |
|
Housing |
Aluminum, 6061 T6 Clear Chem Conversion Film |
|
Isolation |
≥17dB |
|
Connector Pin |
Beryllium Copper, Silver Plate |
|
Amplitude Balance |
≤±0.4dB |
|
Solder |
Lead Free, RoHS Compliant |
|
Phase Balance |
≤±5° |
|
Operating Temperature |
-55～+85℃ |
|
1Power Handling |
Forward ≤35Watt; Reversed ≤2Watt |
|
Operating Humidity |
Up to 95%,Non- Condensing |
|
Impedance |
50Ω |
|
Weight |
600g |
|
Port Connectors |
N-Female |
|
|
|
1Power Handling guaranteed when load’s VSWR within 1.50:1.
