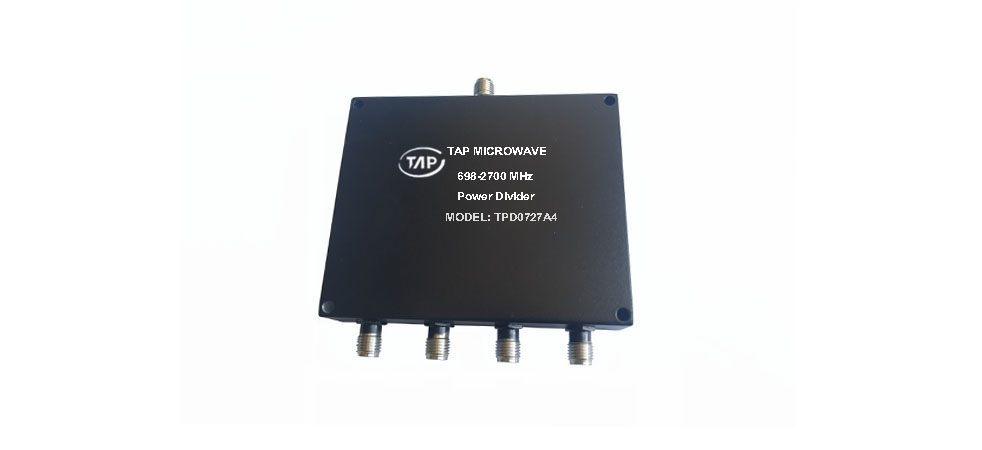

TPD0727A4 698-2700MHz 4 way Power Divider

 Technical Data Sheet  Frequency Range  698~2700MHz    Finish  Natural oxygen  Insertion Loss  ≤0.9dB  (Above 6.02dB Split)         Connector Body ...
Product Details

 Technical Data Sheet

 Frequency Range

 698~2700MHz



 Finish

 Natural oxygen

 Insertion Loss

 ≤0.9dB

 (Above 6.02dB Split)



 Connector Body

 Brass, Tri-Alloy Plate

 VSWR

 Input   ≤1.30:1

 Output  ≤1.20:1



 Housing

 Aluminum, 6061 T6

 Clear Chem Conversion Film

 Isolation

 ≥20dB



 Connector Pin

 Beryllium Copper, Gold Plate

 Amplitude Balance

 ≤±0.3dB



 Solder

 Lead Free, RoHS Compliant

 Phase Balance

 ≤±3°



 Operating Temperature

 -55~+85℃

 1Power Handling

 Forward ≤30Watt;

 Reversed ≤1Watt





 Operating Humidity

 Up to 95%,Non- Condensing

 Impedance

 50Ω



 Weight

 90g

 Port Connectors

 SMA-Female







1Power Handling guaranteed when load’s VSWR within 1.50:1.
