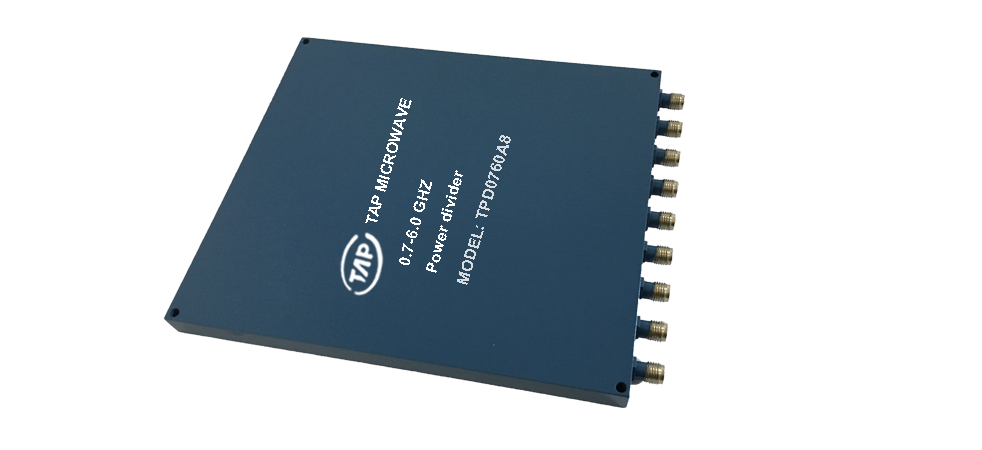

TPD0760A8 0.7-6GHz 8 Way Power Divider

D  Technical Data Sheet  Frequency Range  0.7~6GHz    Finish  Painted Blue_ RAL #5007  Insertion Loss  ≤1.8dB   (Above 9.03dB Split)    Connector Body  Brass, Tri-Al ...
Product Details

D

 Technical Data Sheet
 Frequency Range  0.7~6GHz    Finish  Painted Blue_ RAL #5007
 Insertion Loss  ≤1.8dB



(Above 9.03dB Split)

   Connector Body  Brass, Tri-Alloy Plate
 VSWR  Input   ≤1.50:1



Output  ≤1.30:1

   Housing  Aluminum, 6061 T6



Clear Chem Conversion Film

 Isolation  ≥18dB    Connector Pin  Beryllium Copper, Gold Plate
 Amplitude Balance  ≤±0.4dB    Solder  Lead Free, RoHS Compliant
 Phase Balance  ≤±6°    Operating Temperature  -55~+85℃
 1Power Handling  Forward ≤30Watt;



Reversed ≤1Watt

   Operating Humidity  Up to 95%,Non- Condensing
 Impedance  50Ω    Weight  720g
 Port Connectors  SMA-Female
