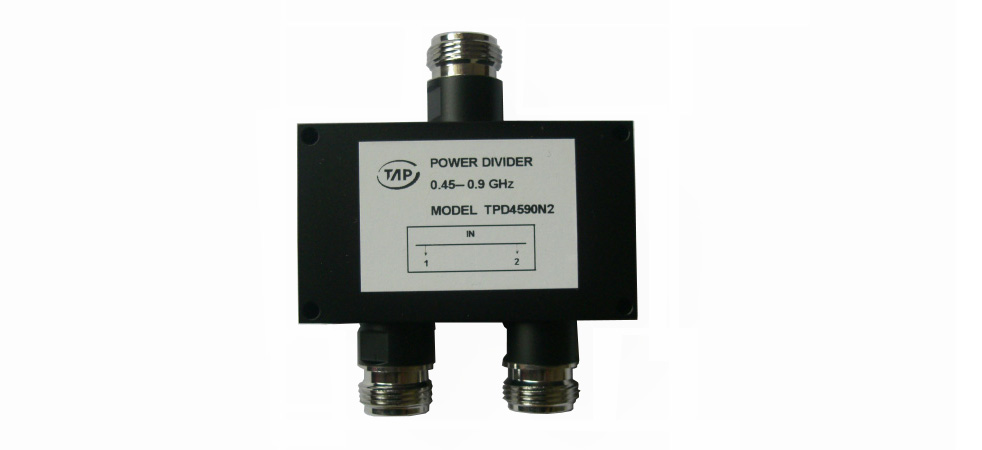

TPD4509N2 0.45-0.9GHz 2 way Power Divider

   Technical Data Sheet  Frequency Range  0.45~0.9GHz    Finish  Natural oxygen  Insertion Loss  ≤0.35dB   (Above 3.01dB Split)    Connector Body Brass, Tri-Alloy Plate ...
Product Details



 Technical Data Sheet
 Frequency Range  0.45~0.9GHz    Finish  Natural oxygen
 Insertion Loss  ≤0.35dB



(Above 3.01dB Split)

   Connector Body Brass, Tri-Alloy Plate
 VSWR  Input   ≤1.20:1



Output  ≤1.20:1

   Housing  Aluminum, 6061 T6



Clear Chem Conversion Film

 Isolation  ≥22dB    Connector Pin  Beryllium Copper, Gold Plate
 Amplitude Balance  ≤±0.2dB    Solder  Lead Free, RoHS Compliant
 Phase Balance  ≤±2°    Operating Temperature  -55~+85℃
 1Power Handling  Forward ≤20Watt;



Rev. ≤1Watt Per Port

   Operating Humidity  Up to 90%,Non- Condensing
 Impedance  50Ω    Weight
 Port Connectors  N-Female

1Power Handling guaranteed when load’s VSWR within 1.50:1
