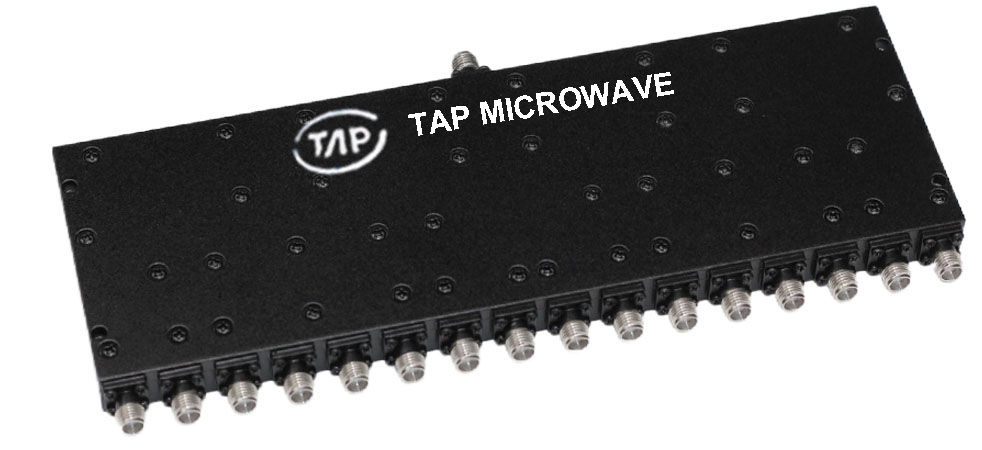

TPD70130A16 7-13GHz 16 way power divider

 Technical Data Sheet  Frequency Range  7~13GHz    Finish  Painted Blue_ RAL #5007  Insertion Loss  ≤2.7dB  (Above 12.04dB Split)         Connector B ...
Product Details

 Technical Data Sheet

 Frequency Range

 7~13GHz



 Finish

 Painted Blue_ RAL #5007

 Insertion Loss

 ≤2.7dB

 (Above 12.04dB Split)



 Connector Body

 Passivated Stainless Steel

 VSWR

 Input   ≤1.60:1

 Output  ≤1.50:1



 Housing

 Aluminum, 6061 T6

 Clear Chem Conversion Film

 Isolation

 ≥17dB



 Connector Pin

 Beryllium Copper, Gold Plate

 Amplitude Balance

 ≤±0.8dB



 Solder

 Lead Free, RoHS Compliant

 Phase Balance

 ≤±10°



 Operating Temperature

 -55~+85℃

 1Power Handling

 Forward ≤30Watt;

 Reversed ≤1Watt





 Operating Humidity

 Up to 95%,Non- Condensing

 Impedance

 50Ω



 Weight

 450g

 Port Connectors

 SMA-Female







1Power Handling guaranteed when load’s VSWR within 1.50:1.
