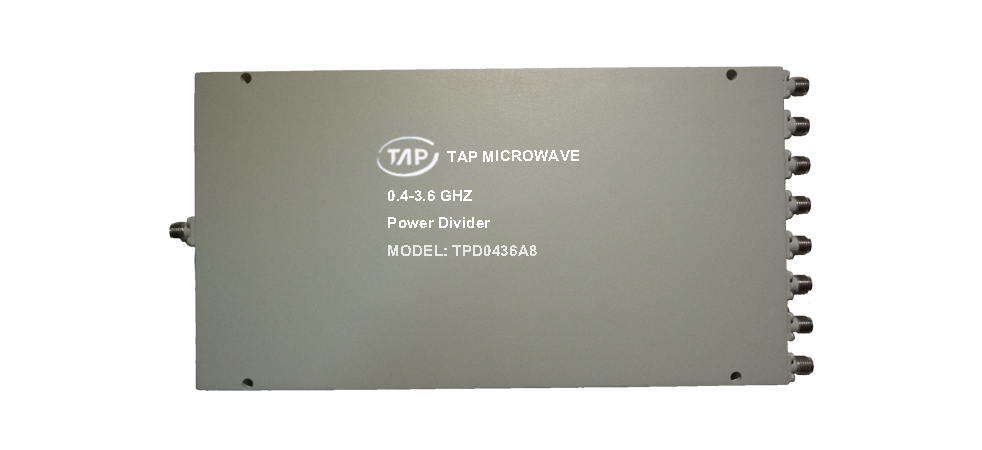

TPD0436A8 0.4-3.6GHz 8 way Power Divider

 Technical Data Sheet  Frequency Range  0.4~3.6GHz    Finish  Painted Blue_ RAL #5007  Insertion Loss  ≤2.4dB   (Above 9.03dB Split)    Connector Body  Brass, Tri-All ...
Product Details
 Technical Data Sheet
 Frequency Range  0.4~3.6GHz    Finish  Painted Blue_ RAL #5007
 Insertion Loss  ≤2.4dB



(Above 9.03dB Split)

   Connector Body  Brass, Tri-Alloy Plate
 VSWR  Input   ≤1.50:1



Output  ≤1.50:1

   Housing  Aluminum, 6061 T6



Clear Chem Conversion Film

 Isolation  ≥16dB    Connector Pin  Beryllium Copper, Gold Plate
 Amplitude Balance  ≤±0.5dB    Solder  Lead Free, RoHS Compliant
 Phase Balance  ≤±5°    Operating Temperature  -55~+85℃
 1Power Handling  Forward ≤30Watt;



Reversed ≤1Watt







 Operating Humidity  Up to 95%,Non- Condensing
 Impedance  50Ω    Weight
 Port Connectors  SMA-Female
